3d printed keyboard case
Designed to hold 4 10x1mm magnets to hold the two halves together for transport.
Preview

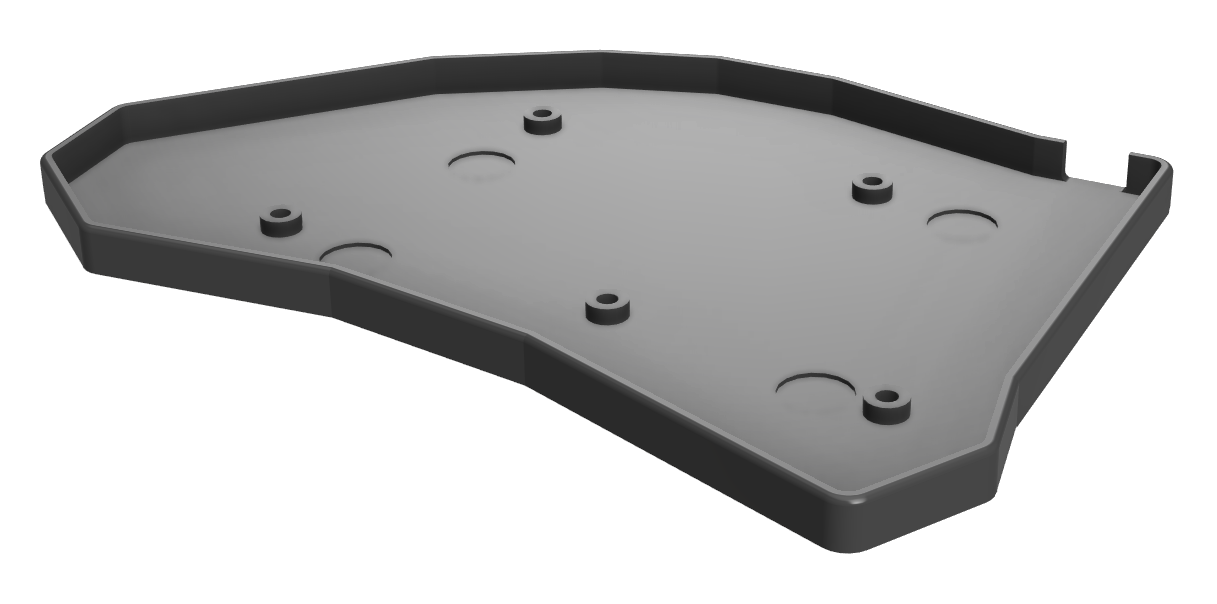

| Top | Front |
|---|---|
 |
 |
Bill of Materials
| Item | Count | Note |
|---|---|---|
| Printed case left + right | 1 | |
| Printed MCU cover | 1 | |
| Magnets | 8 | round, 10x1mm |
| Case screws | 10 | M2*6 |
| Threaded inserts | 10 | M2*3 |
| Silicone feet | 8 | |
| Threaded brass standoffs | 4 | 10mm, M2 |
| MCU Cover screws | 8 | M2*4 |
Printing
- layer height: 0.2mm
- wall thickness: 0.8mm
- infill: doesnt matter
- supports: not needed
